Transpaletas manuales

Elemento de mando ergonómico y manejable con ambas manos
Sistema hidráulico optimizado para menos esfuerzos
Larga vida útil gracias a materiales y un acabado robustos
Sin mantenimiento gracias a uniones permanentemente lubricadas
Válvula de descenso especial para un descenso especialmente suave

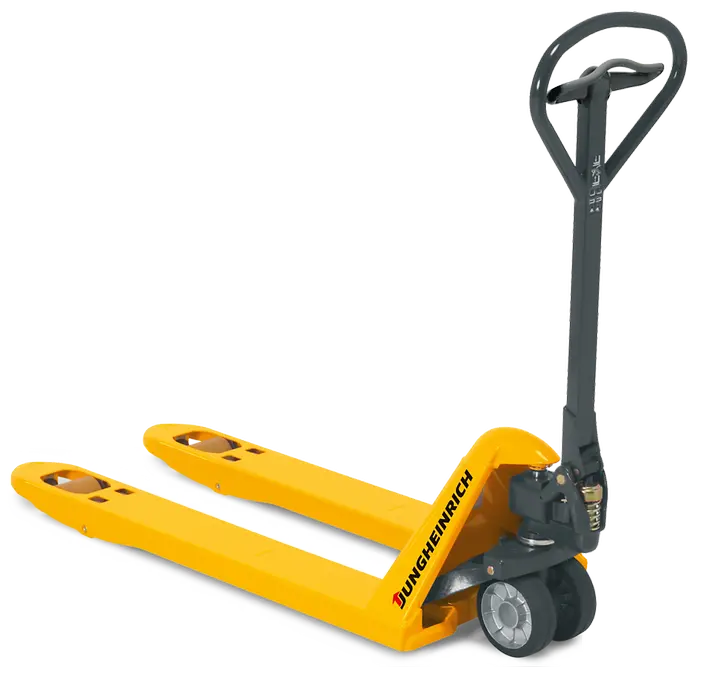

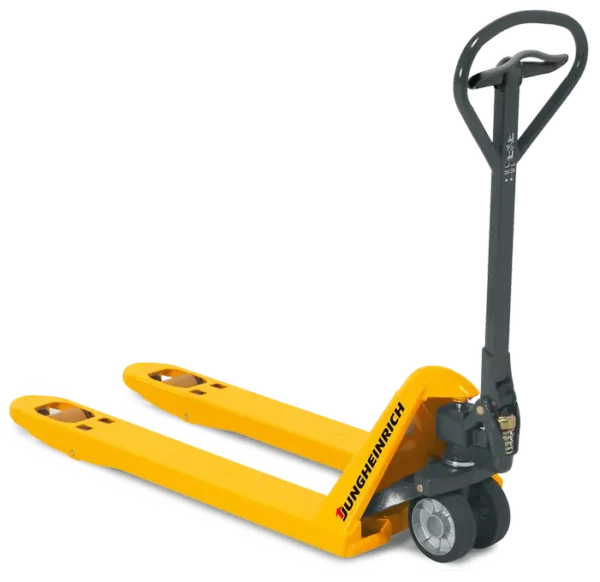

Las transpaletas manuales robustas y fiables AM 22 son los clásicos de Jungheinrich. Estas sirven perfectamente para el transporte diario de mercancías en trayectos cortos. Se pueden manipular de forma especialmente sencilla gracias a su elemento de mando ergonómico que se puede manejar con una sola mano en ambos lados. El sistema hidráulico perfectamente coordinado, en combinación con los casquillos cromados de las ruedas y las juntas, permite mover las cargas con el mínimo esfuerzo. Esto permite un trabajo especialmente ergonómico y aumenta la seguridad en su empresa. La disponibilidad para el servicio de estas transpaletas manuales se asegura gracias a las uniones permanentemente lubricadas y al sistema hidráulico de bombeo sin mantenimiento con una válvula de descenso especial. El acero de alto rendimiento montado y el anclaje soldado de la barra timón garantizan una larga vida útil de la AM 22. Para el transporte seguro y sencillo de mercancías en cualquier situación.Resumen de modelos

Model Capacidad de carga Altura de elevación Velocidad de conducción Longitud total
AM 22, 520×600, N-GN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, N-GN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×902, N-GN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×950, N-GN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×1054, N-GN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, N-GN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1207, N-GN, NH 2.200 kg 122 mm – 1.523 mm
AM 22, 520×600, C-GN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, C-GN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×902, C-GN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×950, C-GN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×1054, C-GN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, C-GN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1207, C-GN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×600, C-GV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, C-GV, NH 2.200 kg 122 mm 0 km/h 1.165 mm
AM 22, 520×902, C-GV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×950, C-GV, NH 2.200 kg 122 mm 0 km/h 1.320 mm
AM 22, 520×1054, C-GV, NH 2.200 kg 122 mm 0 km/h 1.424 mm
AM 22, 520×1150, C-GV, NH 2.200 kg 122 mm 0 km/h 1.520 mm
AM 22, 520×1207, C-GV, NH 2.200 kg 122 mm 0 km/h 1.577 mm
AM 22, 520×600, V-GV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, V-GV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×902, V-GV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×950, V-GV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×1054, V-GV, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, V-GV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1207, V-GV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×600, N-BN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, N-BN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×902, N-BN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×950, N-BN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×1054, N-BN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, N-BN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1207, N-BN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×600, C-BN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, C-BN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×902, C-BN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×950, C-BN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×1054, C-BN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, C-BN, NH 2.200 kg 122 mm 0 km/h 1.520 mm
AM 22, 520×1207, C-BN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×600, C-BV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, C-BV, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×902, C-BV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×950, C-BV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×1054, C-BV, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, C-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1207, C-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1360, C-BV, NH 2.200 kg 122 mm 0 km/h 1.733 mm
AM 22, 520×1600, C-BV, NH 1.500 kg 122 mm 0 km/h 1.973 mm
AM 22, 520×1900, C-BV, NH 1.000 kg 122 mm 0 km/h 2.273 mm
AM 22, 520×2400, C-BV, NH 500 kg 122 mm 0 km/h 2.773 mm
AM 22, 520×600, V-BV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, V-BV, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×902, V-BV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×950, V-BV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×1054, V-BV, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, V-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1207, V-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, N-GN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×600, N-GN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, N-GN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680×902, N-GN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680×950, N-GN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, N-GN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680×1150, N-GN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×600, C-GN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, C-GN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×902, C-GN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680×950, C-GN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, C-GN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680×1150, C-GN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, C-GN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×600, C-GV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, C-GV, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680×902, C-GV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680×950, C-GV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, C-GV, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680×1150, C-GV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, C-GV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×600, V-GV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, V-GV, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680×902, V-GV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680×950, V-GV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, V-GV, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680×1150, V-GV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, V-GV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×600, N-BN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, N-BN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680×902, N-BN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680×950, N-BN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, N-BN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680×1150, N-BN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, N-BN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×600, C-BN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, C-BN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680×902, C-BN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680×950, C-BN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, C-BN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680×1150, C-BN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, C-BN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×600, C-BV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, C-BV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×902, C-BV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680×950, C-BV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, C-BV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680×1150, C-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, C-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1360, C-BV, NH 2.200 kg 122 mm 0 km/h 1.733 mm
AM 22, 680×1600, C-BV, NH 1.700 kg 122 mm 0 km/h 1.973 mm
AM 22, 680×1900, C-BV, NH 1.200 kg 122 mm 0 km/h 2.773 mm
AM 22, 680×600, V-BV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, V-BV, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680×902, V-BV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680×950, V-BV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, V-BV, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680×1150, V-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, V-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×600, N-GN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, N-GN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×902, N-GN, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×950, N-GN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×1054, N-GN, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, N-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1207, N-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×600, C-GN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, C-GN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×902, C-GN, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×950, C-GN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×1054, C-GN, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, C-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1207, C-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×600, C-GV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, C-GV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×902, C-GV, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×950, C-GV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×1054, C-GV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, C-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1207, C-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×600, V-GV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, V-GV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×902, V-GV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×950, V-GV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×1054, V-GV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, V-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1207, V-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×600, N-BN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, N-BN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×902, N-BN, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×950, N-BN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×1054, N-BN, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, N-BN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1207, N-BN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×600, C-BN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, C-BN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×902, C-BN, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×950, C-BN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×1054, C-BN, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, C-BN, SH 2.200 kg 122 mm 0 km/h 1.520 mm
AM 22, 520×1207, C-BN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×600, C-BV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, C-BV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×902, C-BV, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×950, C-BV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×1054, C-BV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, C-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1207, C-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1360, C-BV, SH 2.200 kg 122 mm 0 km/h 1.733 mm
AM 22, 520×1600, C-BV, SH 1.500 kg 122 mm 0 km/h 1.973 mm
AM 22, 520×1900, C-BV, SH 1.000 kg 122 mm 0 km/h 2.273 mm
AM 22, 520×2400, C-BV, SH 500 kg 122 mm 0 km/h 2.773 mm
AM 22, 520×600, V-BV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520×795, V-BV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520×902, V-BV, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520×950, V-BV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520×1054, V-BV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520×1150, V-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520×1207, V-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×600, N-GN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, N-GN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680×902, N-GN, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680×950, N-GN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, N-GN, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680×1150, N-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, N-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×600, C-GN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, C-GN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680×902, C-GN, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680×950, C-GN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, C-GN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×1150, C-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, C-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×600, C-GV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, C-GV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680×902, C-GV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×950, C-GV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, C-GV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680×1150, C-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, C-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×600, V-GV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, V-GV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680×902, V-GV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×950, V-GV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, V-GV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680×1150, V-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, V-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×600, N-BN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, N-BN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680×902, N-BN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×950, N-BN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, N-BN, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680×1150, N-BN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, N-BN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×600, C-BN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, C-BN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680×902, C-BN, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680×950, C-BN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, C-BN, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680×1150, C-BN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, C-BN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×600, C-BV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, C-BV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680×902, C-BV, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680×950, C-BV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, C-BV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680×1150, C-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, C-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1360, C-BV, SH 2.200 kg 122 mm 0 km/h 1.733 mm
AM 22, 680×1600, C-BV, SH 1.700 kg 122 mm 0 km/h 1.973 mm
AM 22, 680×1900, C-BV, SH 1.200 kg 122 mm 0 km/h 2.273 mm
AM 22, 680×600, V-BV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680×795, V-BV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680×902, V-BV, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680×950, V-BV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680×1054, V-BV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680×1150, V-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680×1207, V-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
